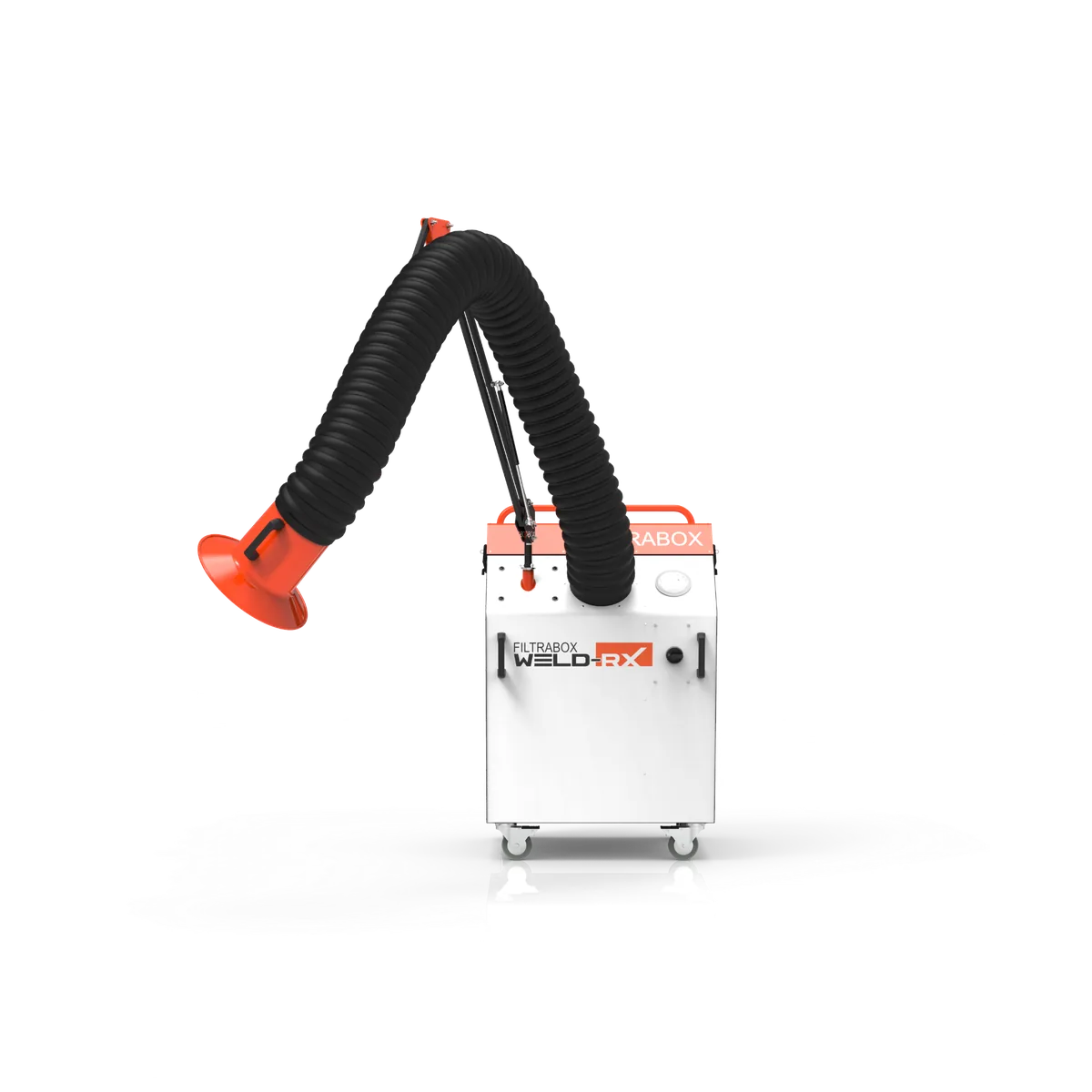

Weld-R Laser Fume Extractor

Weld-R Laser Fume Extractor

  • Portable Laser Welding Extractor with 99.999% @ 0.3 micron
  • HEPA filtration (standard) and high efficiency prefiltration to capture the ultrafine particles generated by laser welding.
  • Extracts, filters and recirculates clean air into the workspace.
  • Includes 10 foot long, 8” diameter duct, lightweight, high-flow, high-maneuverability extraction arm. For local exhaust ventilation.
  • Plug and play: Comes fully assembled in one box. Just lift it off of the pallet and plug it into a standard 120V, 15 amp wall socket.

Starting at $4,895*

*Prices show in USD

Features

Your Title Goes Here

Hidden

High Efficiency HEPA and Prefilter as Standard

F9 Pre-filter: The pre-filter removes the majority of the submicronic respirable dust, protecting the critical downstream HEPA filter from strain and premature clogging. The filter media is encased in a strong aluminum cartridge to resist contamination bypass. The high surface area mini-pleat filter media ensures high capacity and efficiency for laser welding applications.

HEPA filter: The HEPA filter is tested at 99.999% @ 0.3 microns. This means that it removes 99.999% of the most aerodynamically penetrating particles, known to be 0.3 microns, while smaller and larger particles are even more effectively captured, resulting in extremely clean air; free of respirable dust. Learn more. The filter media is encased in a rigid aluminum cartridge to resist contamination bypass. Learn more. The high surface area mini-pleat filter media ensures high capacity and efficiency for laser welding applications.

Both filters are Included as standard.

FREE-FLO Extraction Arm

Take full advantage of the blower’s power with the huge free-flowing 8-inch diameter arm – maintains osha compliant capture velocity and suction range for longer. An 8” duct is nearly 5x more free-flowing than a 6” duct.

Faster and smoother airflow is achieved by keeping the arm’s mechanical structure external to the duct – no velocity robbing obstructions within the airstream! The joints also move more freely and last longer when isolated from the abrasive, metallic, welding fume particles present in the duct.

Our innovative arm features easily accessible exterior friction adjustments, ensuring quick and effortless positioning. With our unique “anti-slip adjustments,” the joints maintain their tension without the common issue of bolts loosening over time. Combined with a lightweight design, this arm requires significantly less effort to position and stays securely in place, eliminating any sagging.

Excellent reach with a length of 10 feet.

Included as standard.

Integrated Pressure Gauge

Reliable and easy to read analog pressure gauge will let you know when to change the filters – No guess work.

Included as standard.

Poweful 1.5 HP Blower Motor

Provdes the power you need to achieve osha compliant capture velocity for weldng.

Heavy-duty reliability.

Spark Arrestor

A spark arrestor prevents sparks and embers from being expelled into the environment. The spark arrestor is a steel mesh on a steel frame which is removable for cleaning. The mesh spark arrestor is situated in front of the prefilter and after a spark baffle chamber which is just aft of the blower impeller.

Specifications


Technical/Electrical Specs.

Height39" (not including arm)
Width30"
Depth39"
Voltage120V
Frequency60 Hz
Amperage13 A
Warranty1 year

Included Filters

TypeMaterialTotal MediaCartridge Type
1 Pre-filter F9 Glass Fiber15 m2Rigid Aluminum Case
1 HEPA H14Glass Fiber15 m2Rigid Aluminum Case
