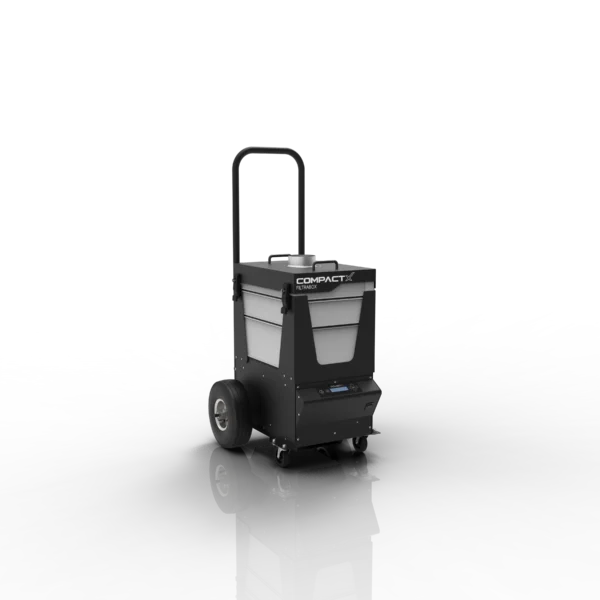

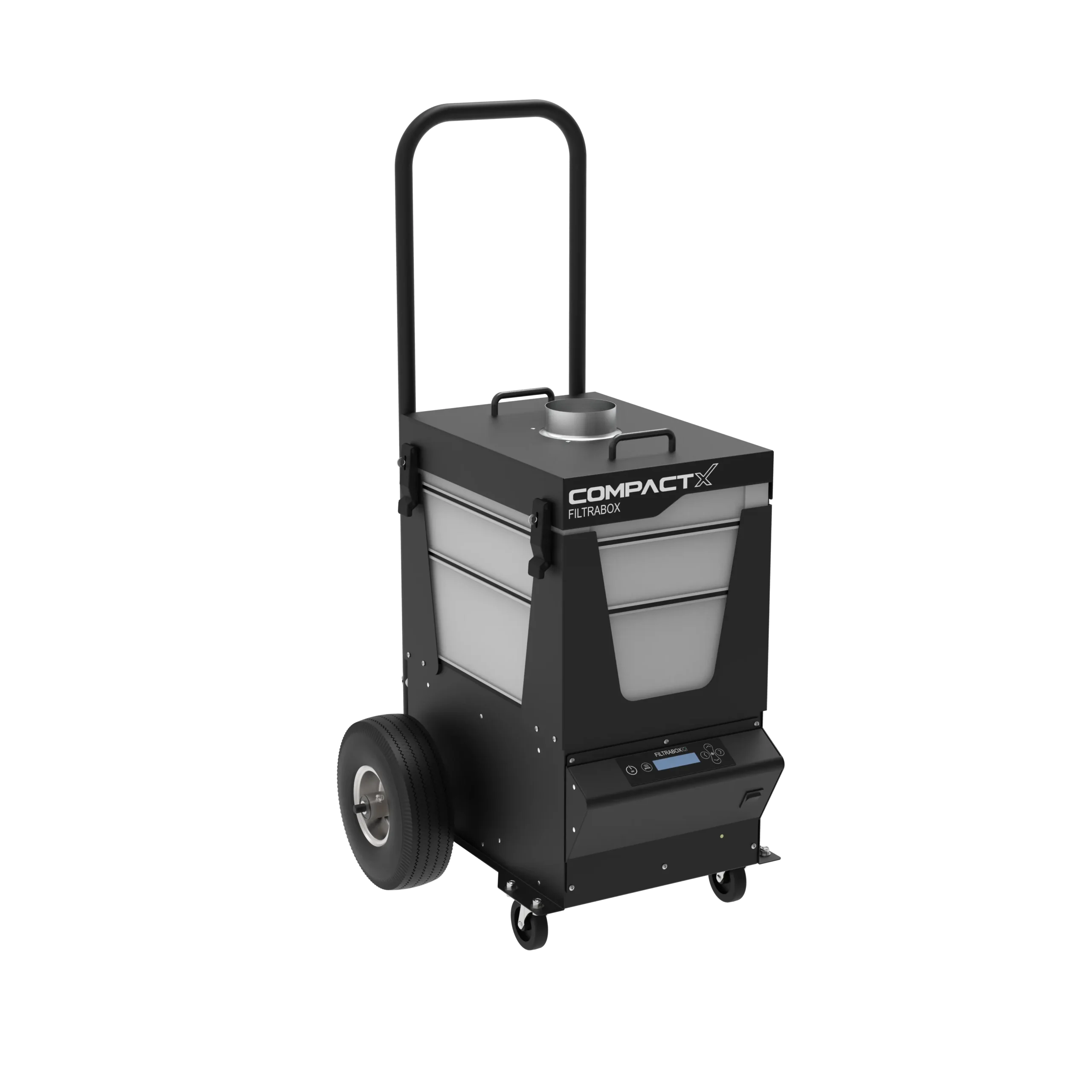

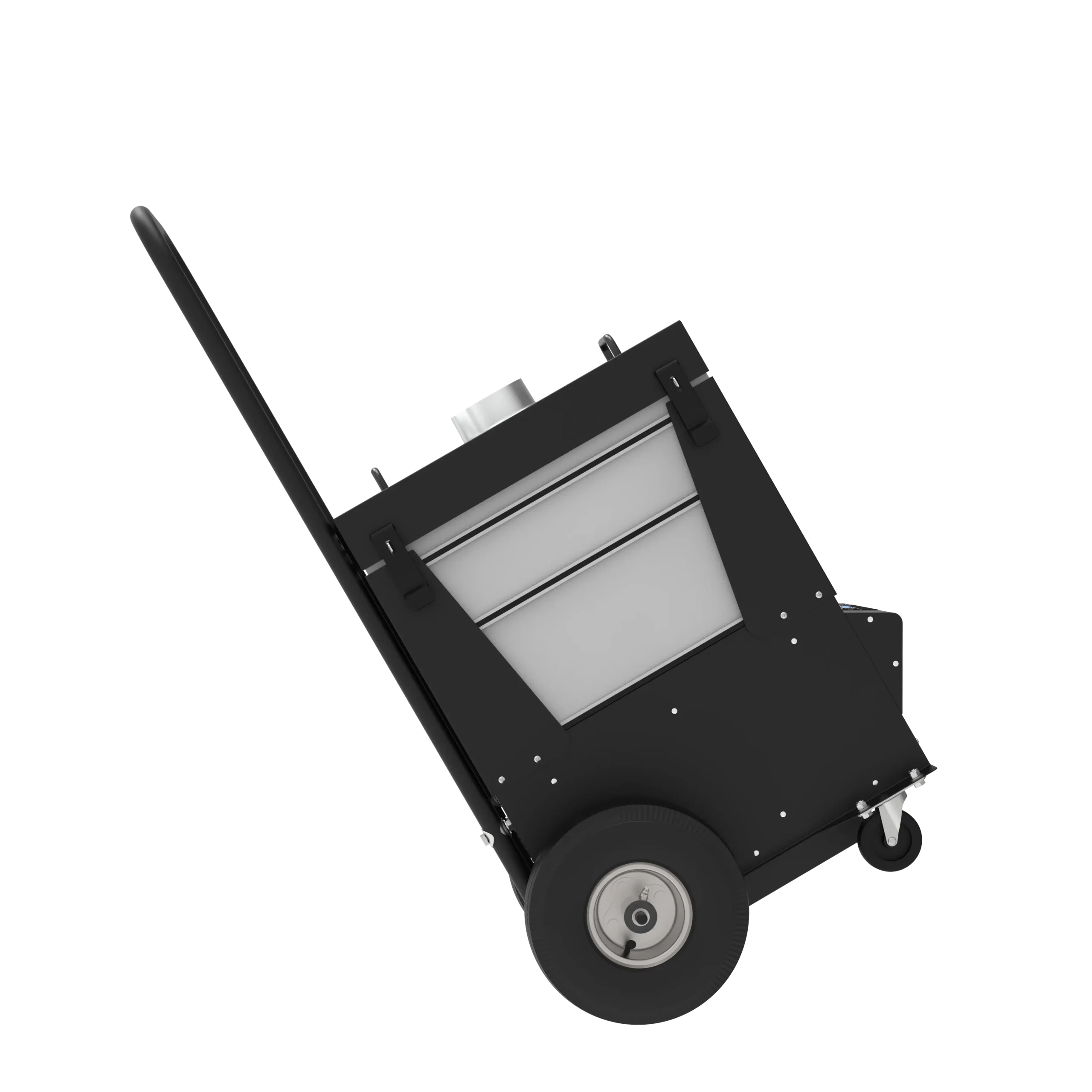

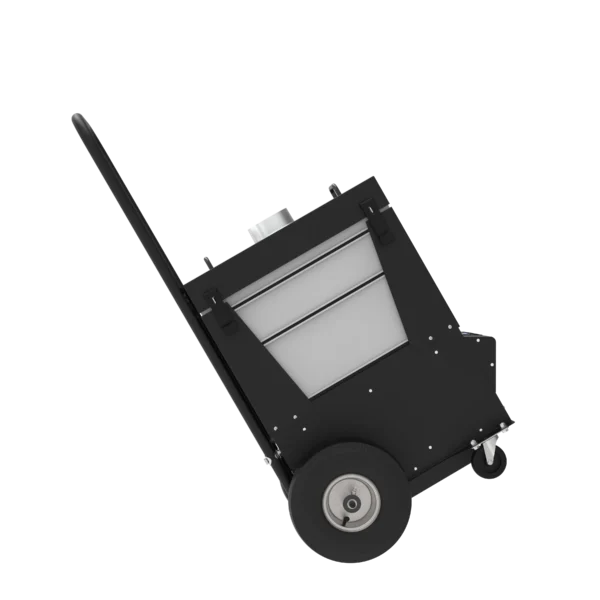

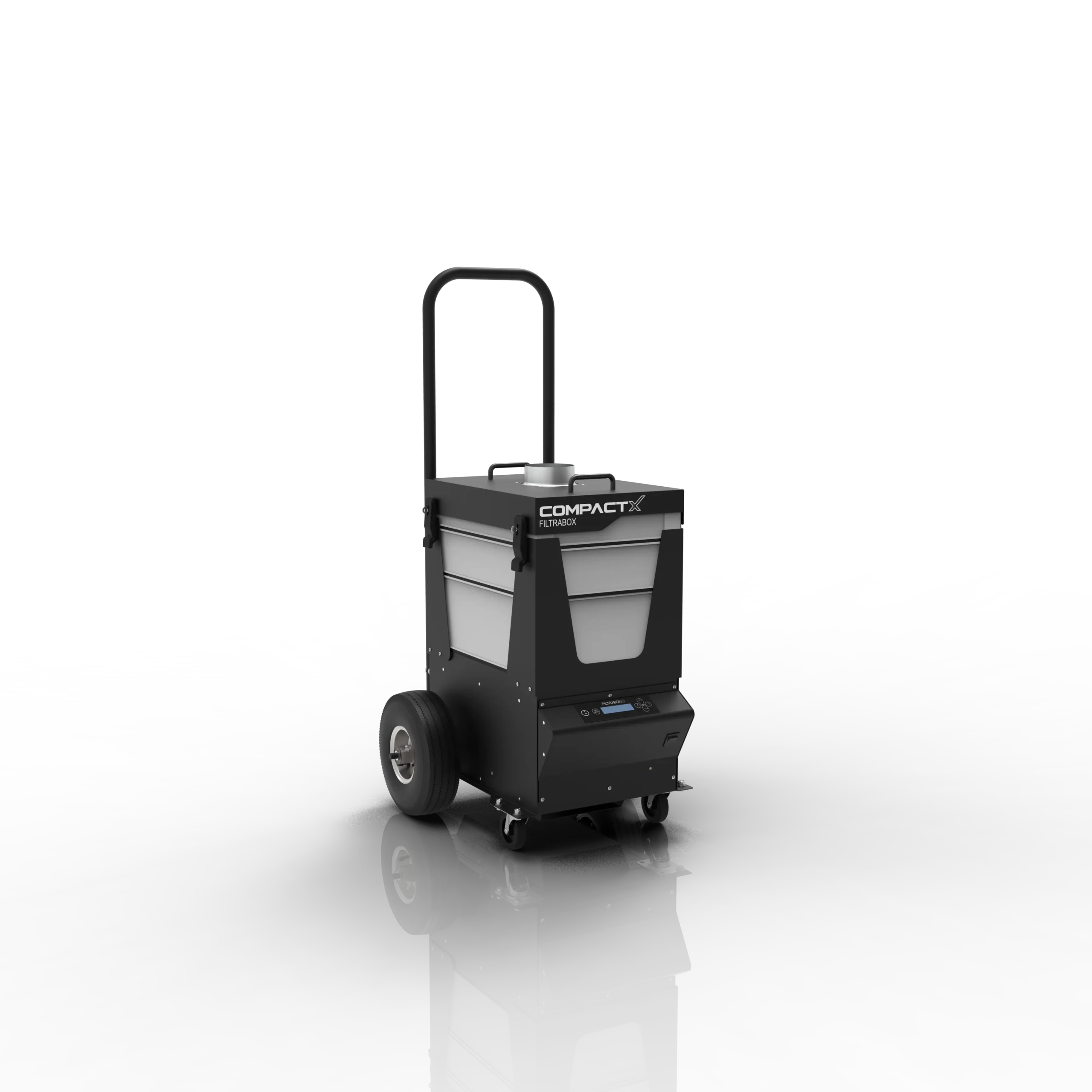

Compact X-M

Portable Fume Extractor for mobile printing. Single-blower and high capacity 3 stage Hydrophobic HEPA filtration for excellent fog removal performance in a space-saving format. Captures the thick oily fog generated during the curing of the printed transfers. Produce quality transfers for garments and other substrates in a clean air environment – your products and employees will benefit!

Features

Your Title Goes Here
Your content goes here. Edit or remove this text inline or in the module Content settings. You can also style every aspect of this content in the module Design settings and even apply custom CSS to this text in the module Advanced settings.
Intelligent Flow Regulator
As filters become loaded with contaminants over time, they become more restrictive to airflow. The intelligent flow regulator proportionally increases power to the blowers to automatically overcome the restrictions and maintain consistent fume extraction. Just enter your flow setpoint and Filtrabox does the rest. Filtrabox will also let you know when to change filters.
Slim-line Design
Others try to achieve space savings by offering smaller machines. But this results in less filter capacity, more noise, and less airflow.
The Slim-line design shrinks the width of the extractor and relocates critical performance features into the plentiful depth dimension, allowing for maximum airflow, filter capacity, and noise reduction in a space-saving package -no compromises. Ask us for 3D models of our fume extractors to make your interior design/workflow layout a breeze.

Slim Line Size Comparison

Robust, Simple User Interface.
Dust, splash-proof, and impact-resistant, the new membrane touchpad interface offers both improved protection against industrial contaminants and simplified intuitive control. A fume extractor should simply keep the air clean and work when you want it to work. The interface is canted to an optimal angle for better viewing clarity and easy touch actuation.

Filtrabox Fume Extractor User Interface

Fast and Friendly Tech Support: Modularity for Serviceability
Our fume extractors comprise many complex electronics components and sensors to monitor and control their performance. However, we have simplified the Filtrabox by consolidating the components into two simple and removable
modules:

Electronics Module: This module includes all the interface, control, and power systems.
Blower Module: This module includes the blower and flow sensor.

In the event of a field issue, our tech support need only focus on diagnosing two modules to quickly dispatch the appropriate module to you for immediate replacement. The modules are simple to replace with only a few plug-and-play wire harnesses – no tech experience required.

Extreme Air Power: Digital Blower w/ Hyper bearings
All Filtrabox systems use digital blowers to create powerful, reliable suction. Traditional brushed blowers inevitably wear out, lose suction and need replacement. Filtrabox’s combination of digital contactless rotors and

contaminant-resistant hyper bearings allows for extreme rotational speeds and maintenance-free operation for years; more suction power – no maintenance.

Blower Cutaway

Specifications


CompactX-M MODEL

Professional Fume Extraction Systems by PAT Technology

CompactX-M

Airflow 235 CFM
Pre-filter 6 m²
HEPA Filter 6 m²
Carbon Filter 40 lbs
Amps @ 240V/120V 6/12 A
Noise Level 50 dB
Entry Level
Compact

Ideal For:

Small laser systems and light-duty applications
